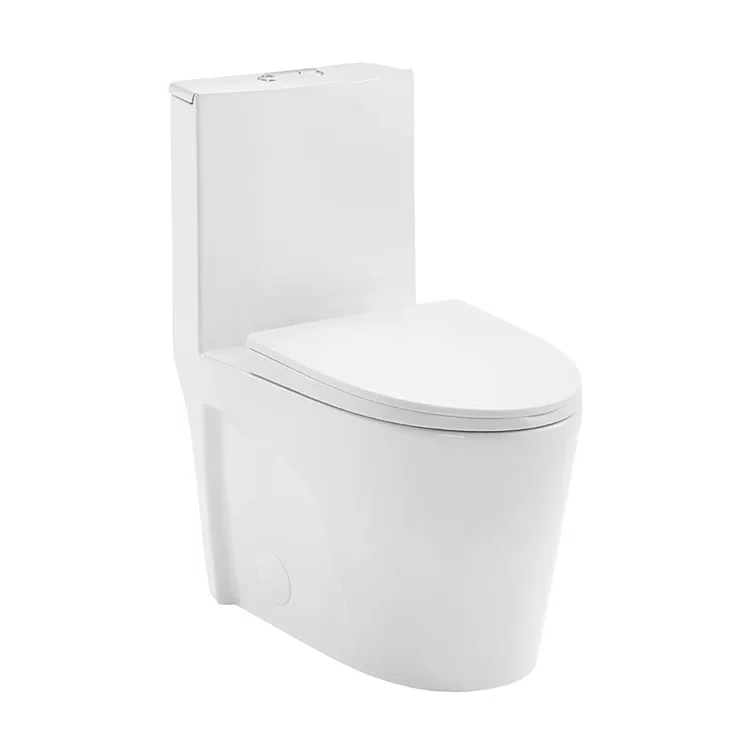

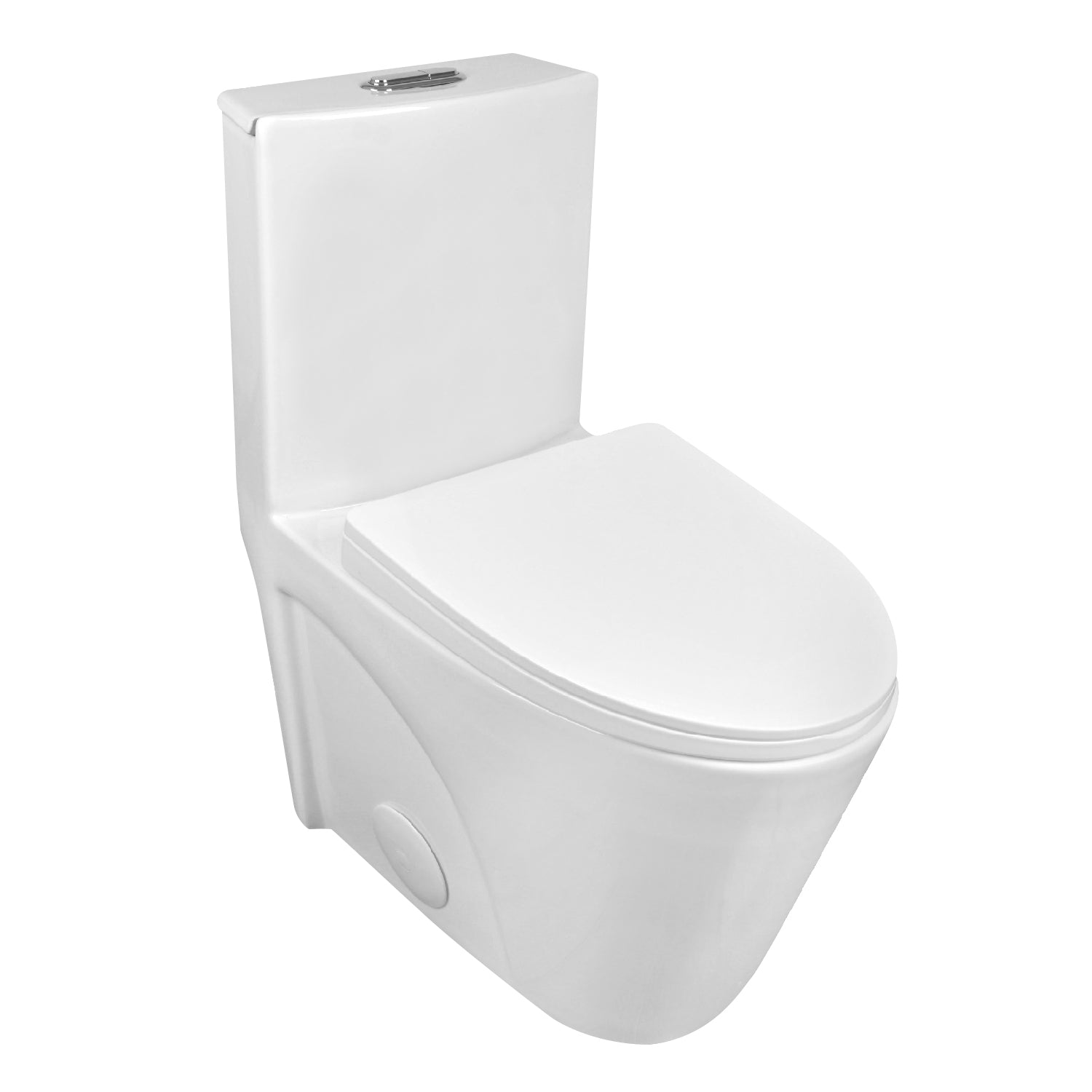

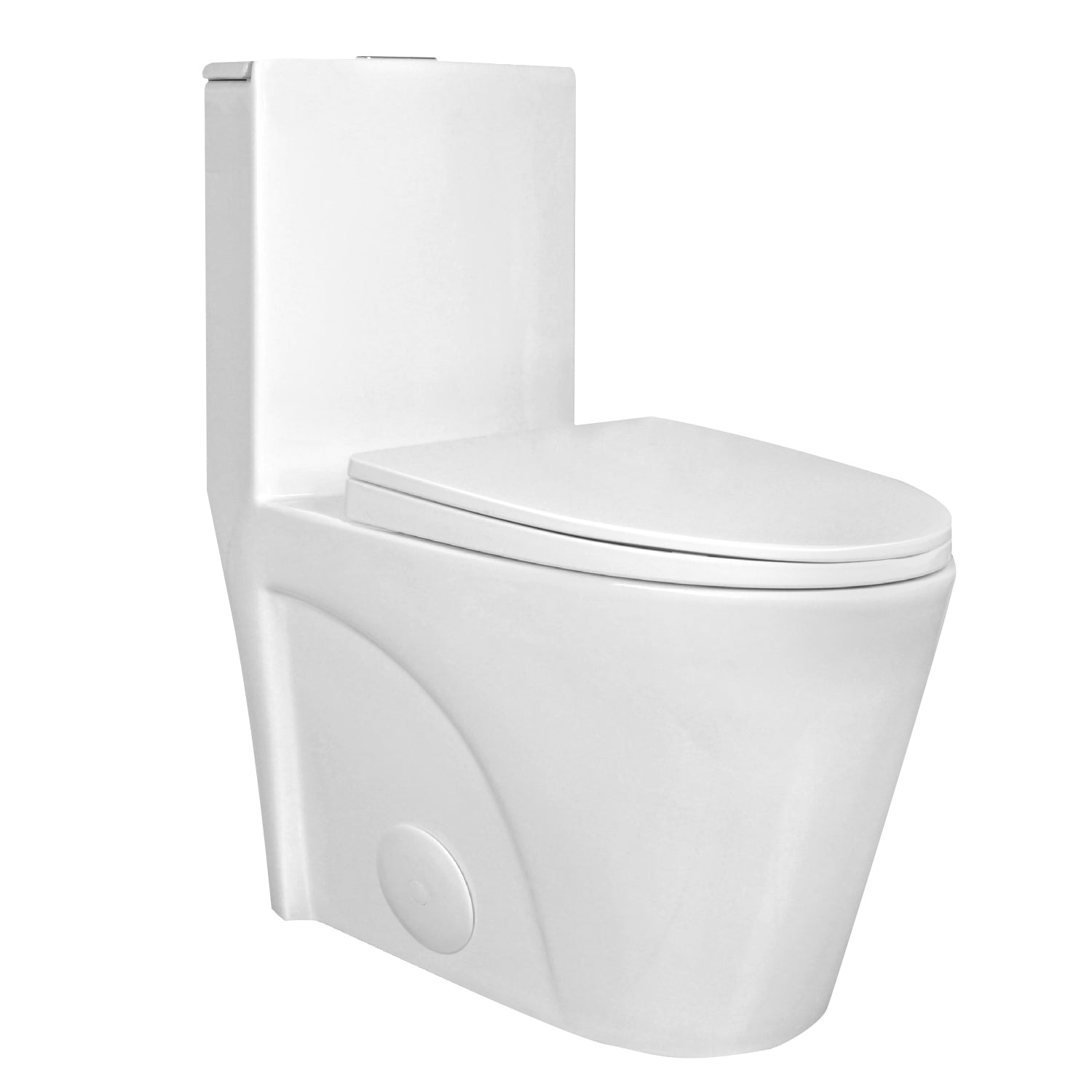

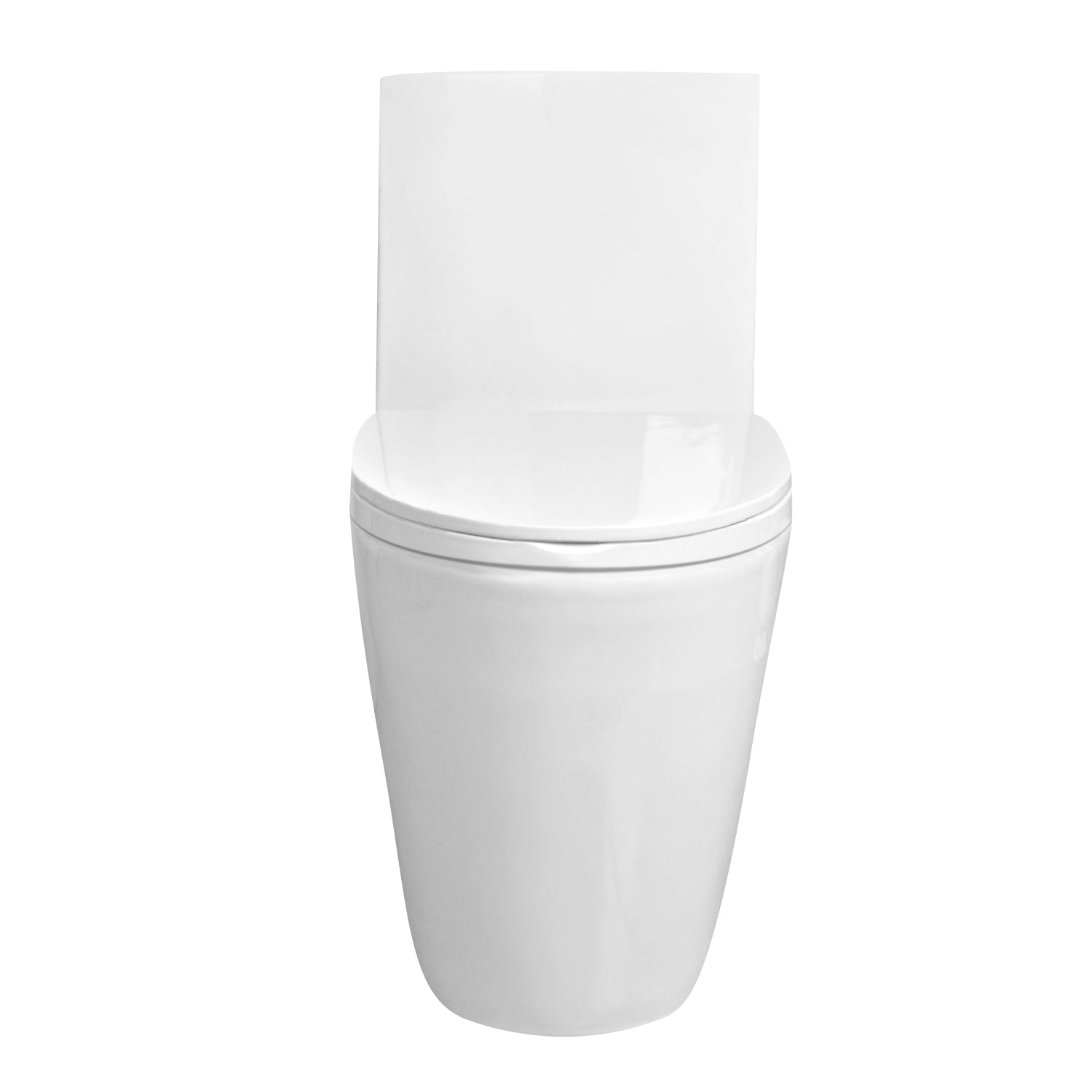

The modern DeerValley Dual-Flush Elongated One-Piece Toilet with a full-skirted bowl has clean lines and presents a simple and elegant visual experience, suitable for most styles of bathrooms. The unique fan-shaped design on the side incorporates an Oriental aesthetic. Concealed trap-way and seamless design make cleaning easier. Dual-flush functionality offers more options and maximizes efficacy, the super Jet siphon flush provides a powerful flush that keeps the toilet from clogging and saves water. High temperature-calcined ceramic glaze integrated white toilet has a strong texture, good pressure resistance, strong corrosion resistance, and good scratch resistance. In addition, the toilet seat has a soft-close function to reduce collision noise, and the seat has a large contact area with your butt, providing a quiet and comfortable experience.
Features

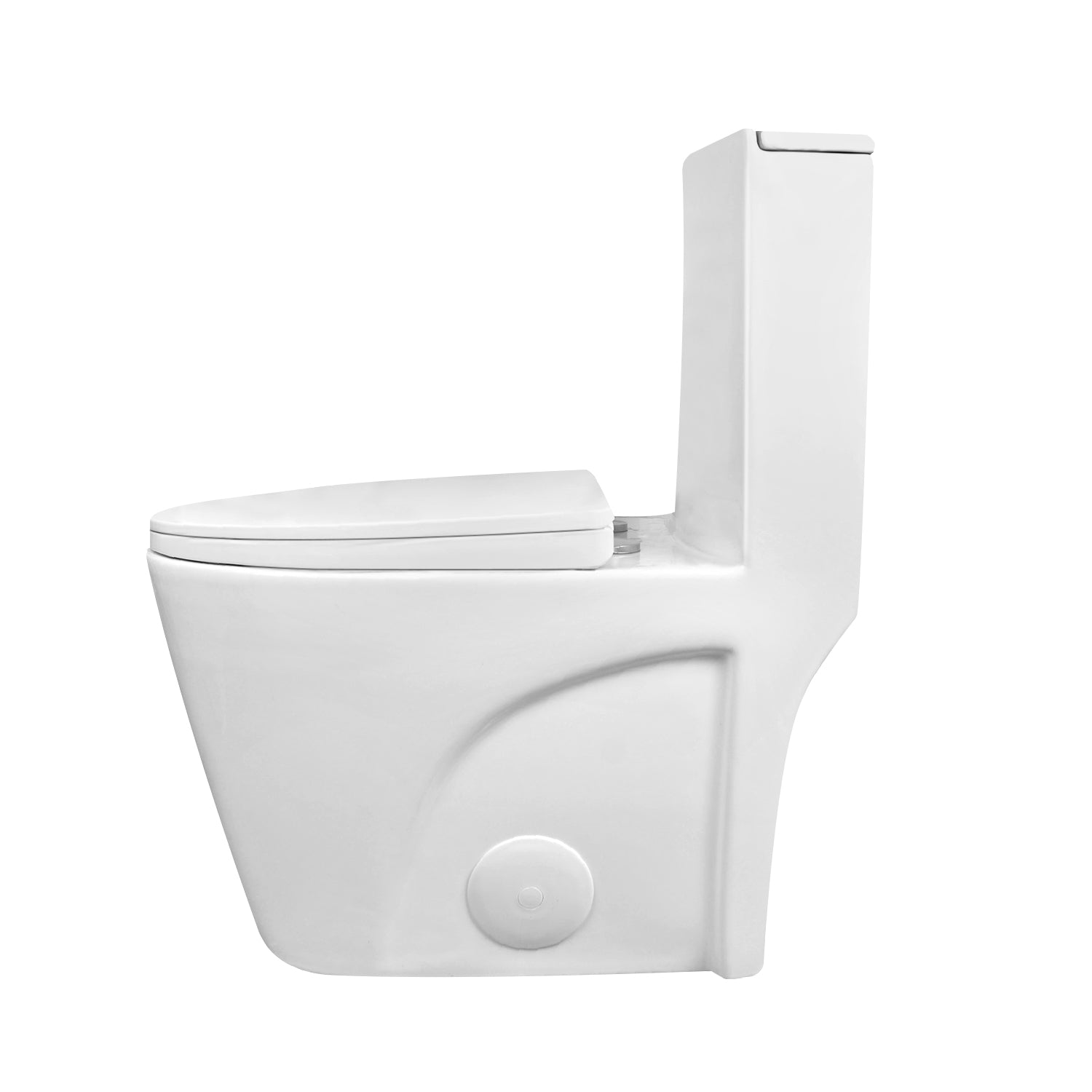

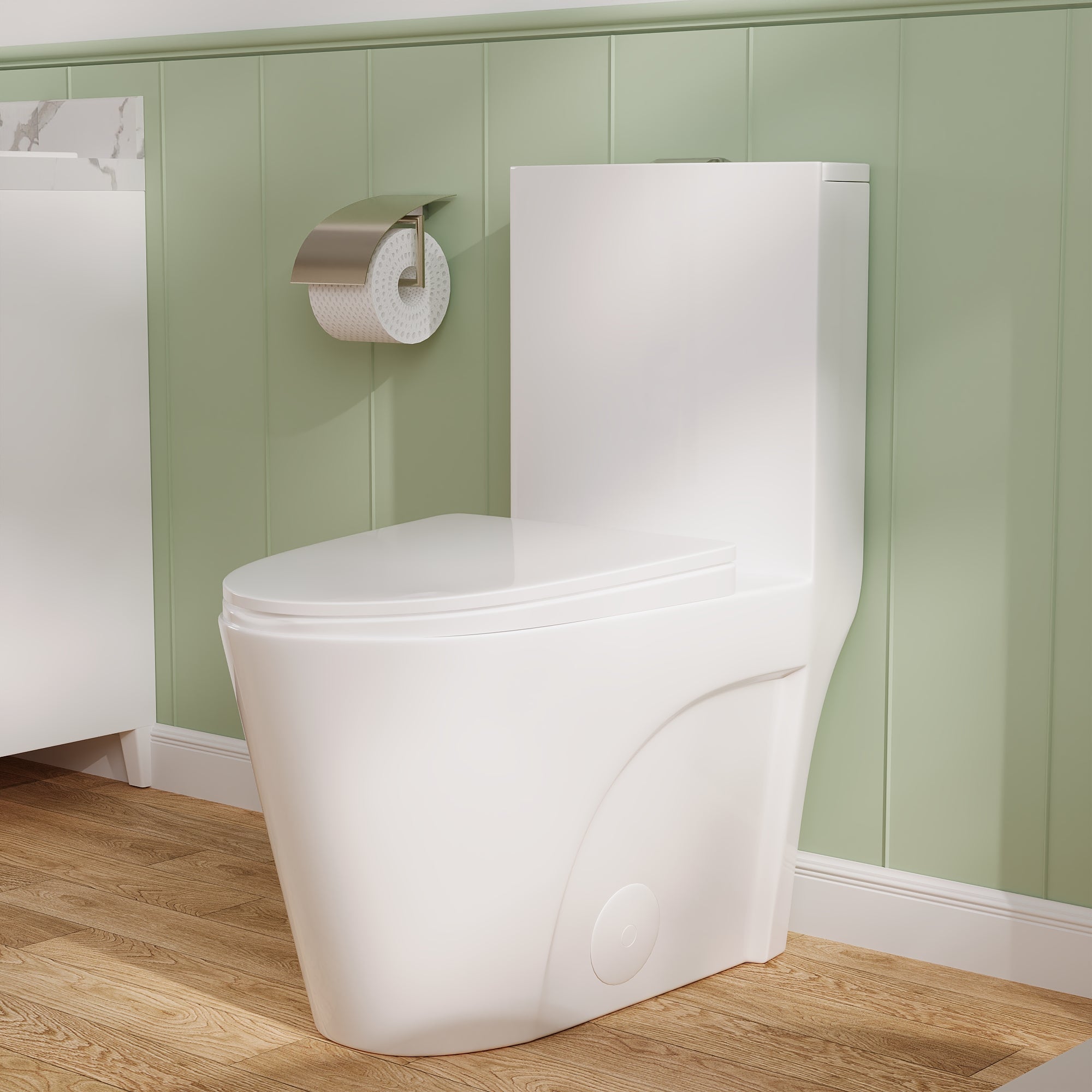

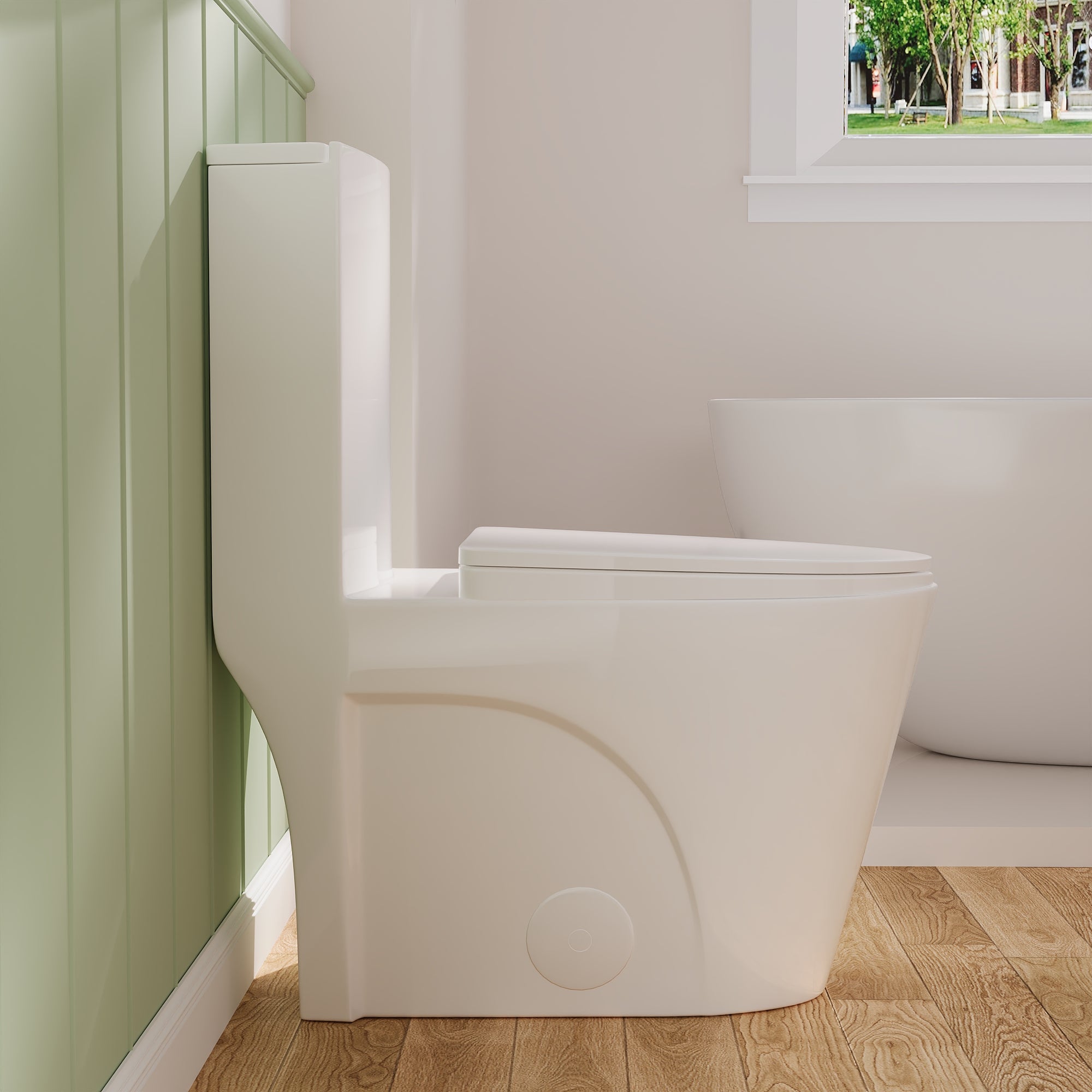

• The side of the DeerValley one-piece toilet has a unique fan-shaped design with a classical Oriental aesthetic. It brings an elegant experience to your bathroom.

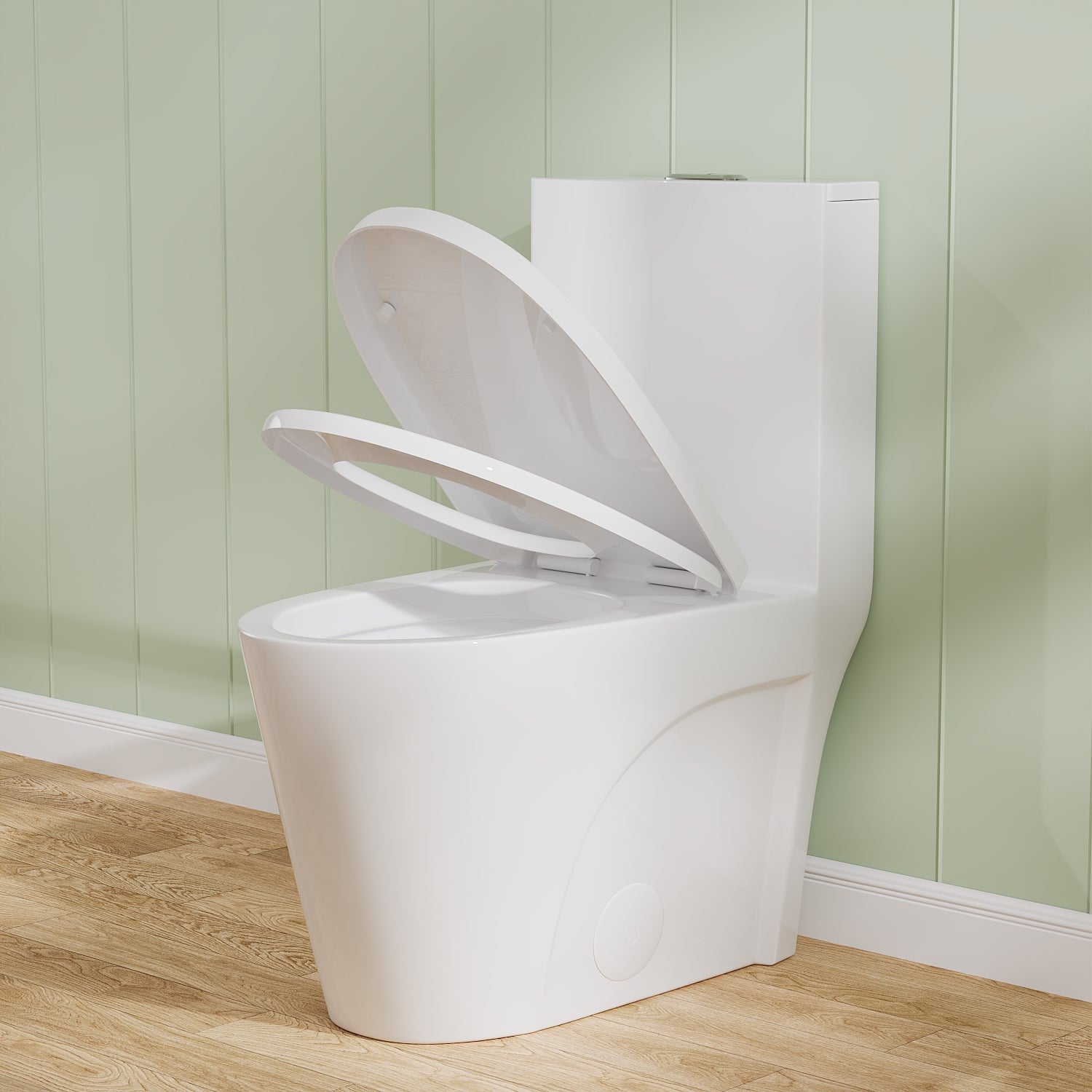

• This elongated toilet seat allows more contact with your butt and legs, allowing you to feel comfortable without numbness. Soft closed seat design reduces noise and brings you peace.
• A toilet seat with a soft closing function can avoid excessive force when closing the toilet seat which is beneficial to prolong the service life.
• All-in-One package: including toilet, pre-installed soft closing toilet seat, pre-installed flush valve, high-quality wax ring, floor bolts, and installation instructions.

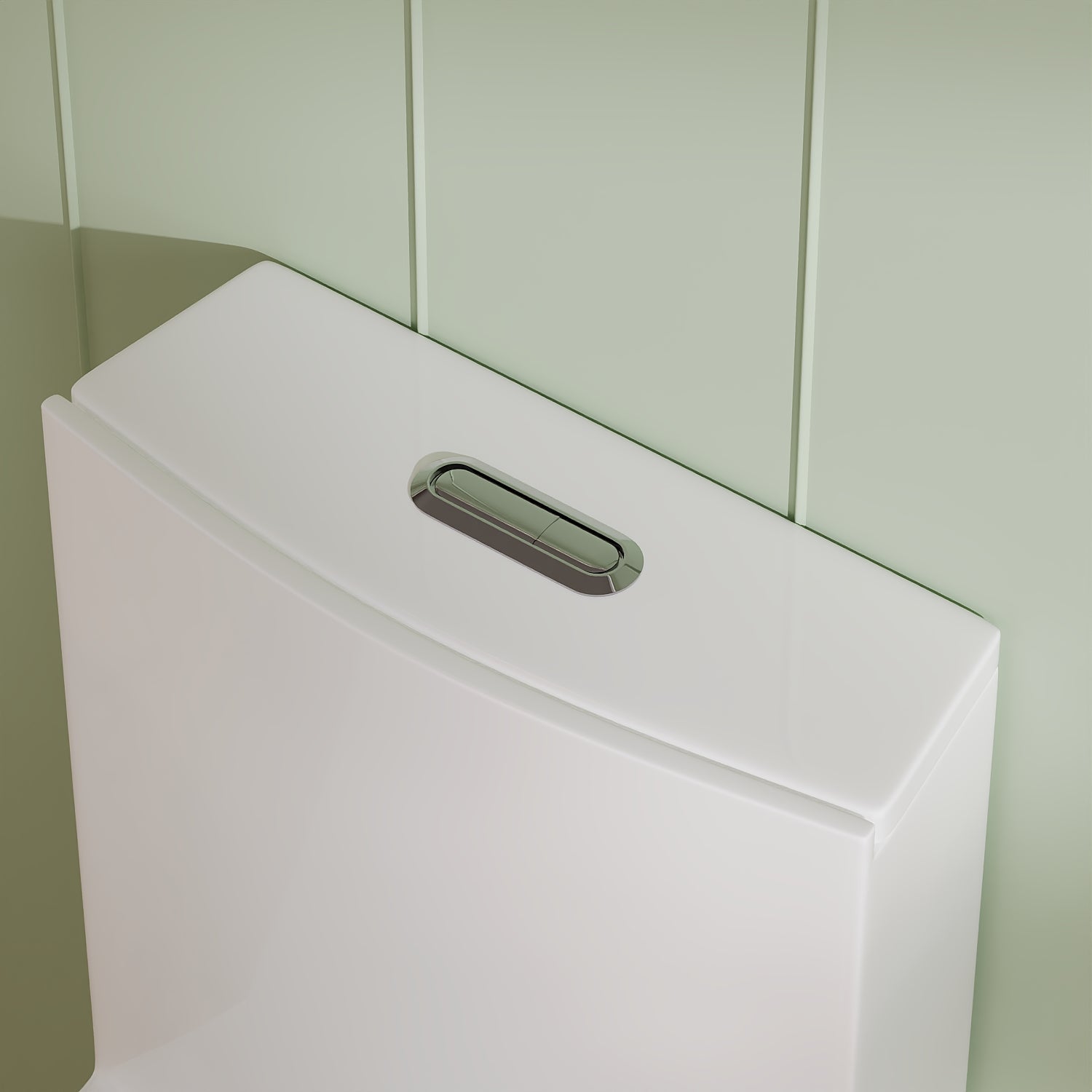

• DeerVally highly efficient dual-flush toilet allows you to proactively conserve water by selecting 1.1 GPF or higher ( 1.6 GPF ) for multiple jobs. Siphon flushing toilet with the fully glazed flush system, bringing super quiet and powerful flushing – No clogs, No leaks, and No problems.

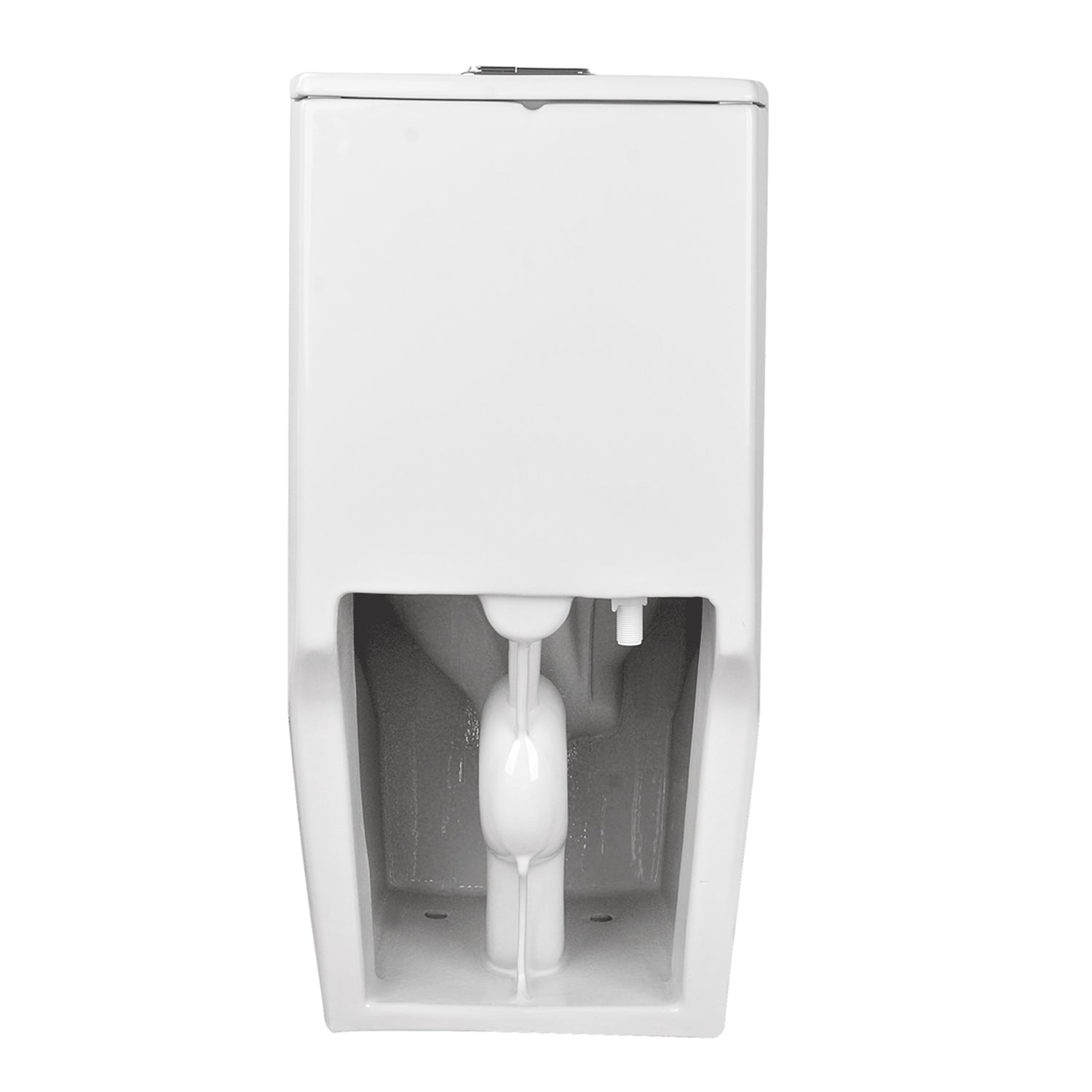

• The concealed trap-way and fully glazed surface design for this one-piece white toilet make cleaning much easier. It has no corners or grooves and is very easy to reach for cleaning.
• This floor-mounted one-piece toilet is easily installed, but please note that the water supply must be turned off before installation.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
MaP：Powerfully blend flushing performance, reliability, waste clearance, and durability.?
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

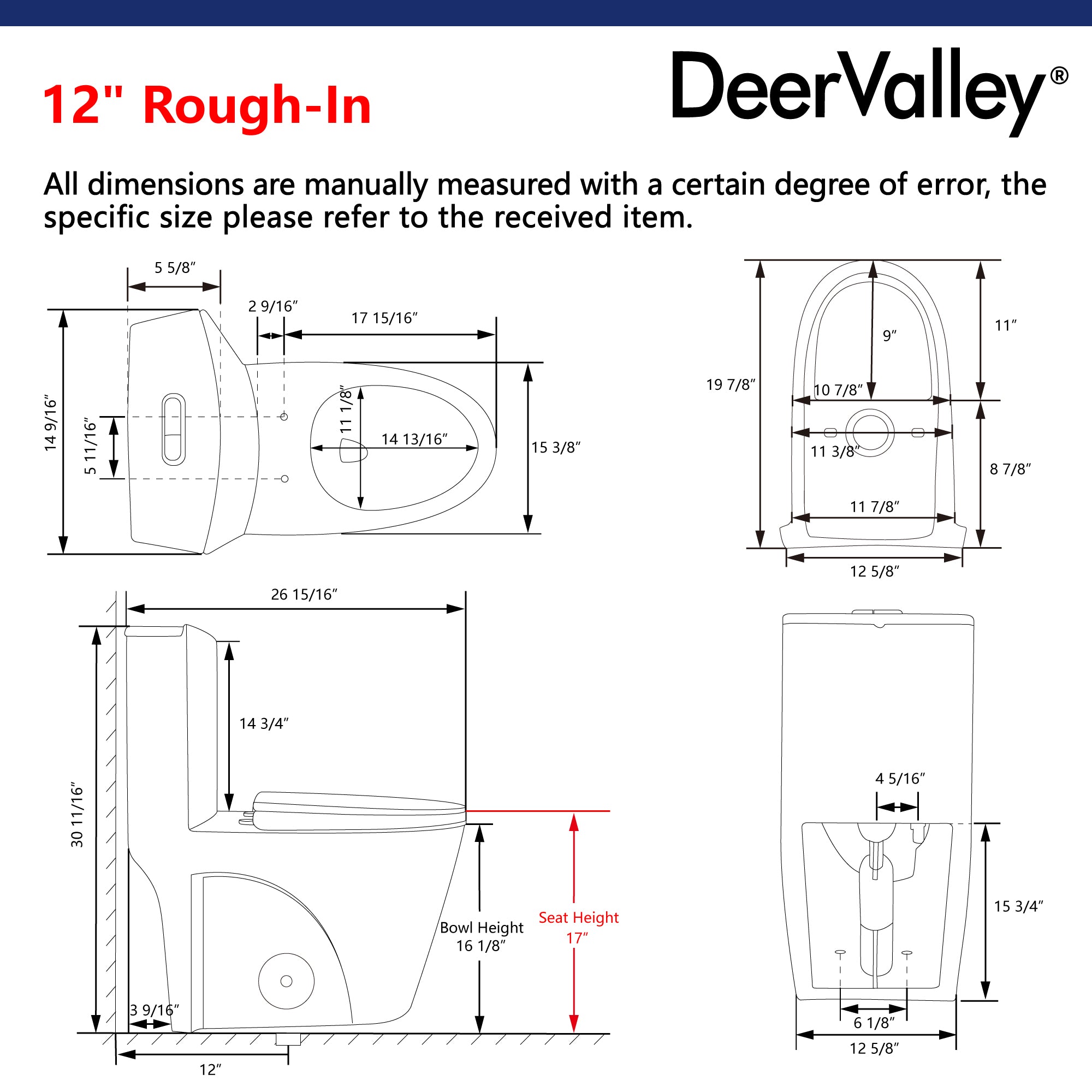

Weights & Dimensions
Overall: 26.97″L X 15.35″W X 30.31″H
Rough In Size: 12″ / 10″
Toilet Seat Height – Top to Bottom: 17.32″
Bowl Height – Top to Bottom: 16.14″
Tank: 14.76″H X 14.76″L X 5.91″W
Tank Lid: 0.63″H X 14.57″L X 5.63″W
Bolts Spread Distance: 5.67″
Distance from the Seat Installation Hole to the Tank: 2.56″
Distance from the Back of the Toilet to the Wall: 3.54″
Toilet Installation Hole Distance: 6.1″
Height from the Bottom of the Water Tank to the Ground: 15.75″
Distance Between the Center of Adapter and the Center of Trapway: 4.33″
Trapway Diameter(Inside): 2.17″
Toilet Seat: 2.36/3.43 Back/Front” H X 14.96″W X 17.91″L
Toilet Seat Inside Ring: 8.98″W X 12.36″L
Bowl: 14.84″L X 11.1″W X 16.14″H
Toilet Base Dimension: 19.88″L X 12.6″W
Overall Product Weight: 117 lb.
Flush Volume: 1.1/1.6 GPF
What is included in the package?
• Toilet Flange, Toilet tank side lid.
Compatible Accessories
• Flush Button: DV-F102V31
• Toilet Seat: DV-F102S11
• Tank Lid: DV-F102T11
• Waxring and Toilet Bolts: DV-F008P11
• Toilet Seat Quick Release Bracket: DV-F102S01
• Side Bolt Cover: DV-F026P21
Toilet Seat Bidet:
DeerValley’s Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.
•
DV-1B0093 & DV-1B0095
Installation Manual:
?
?
