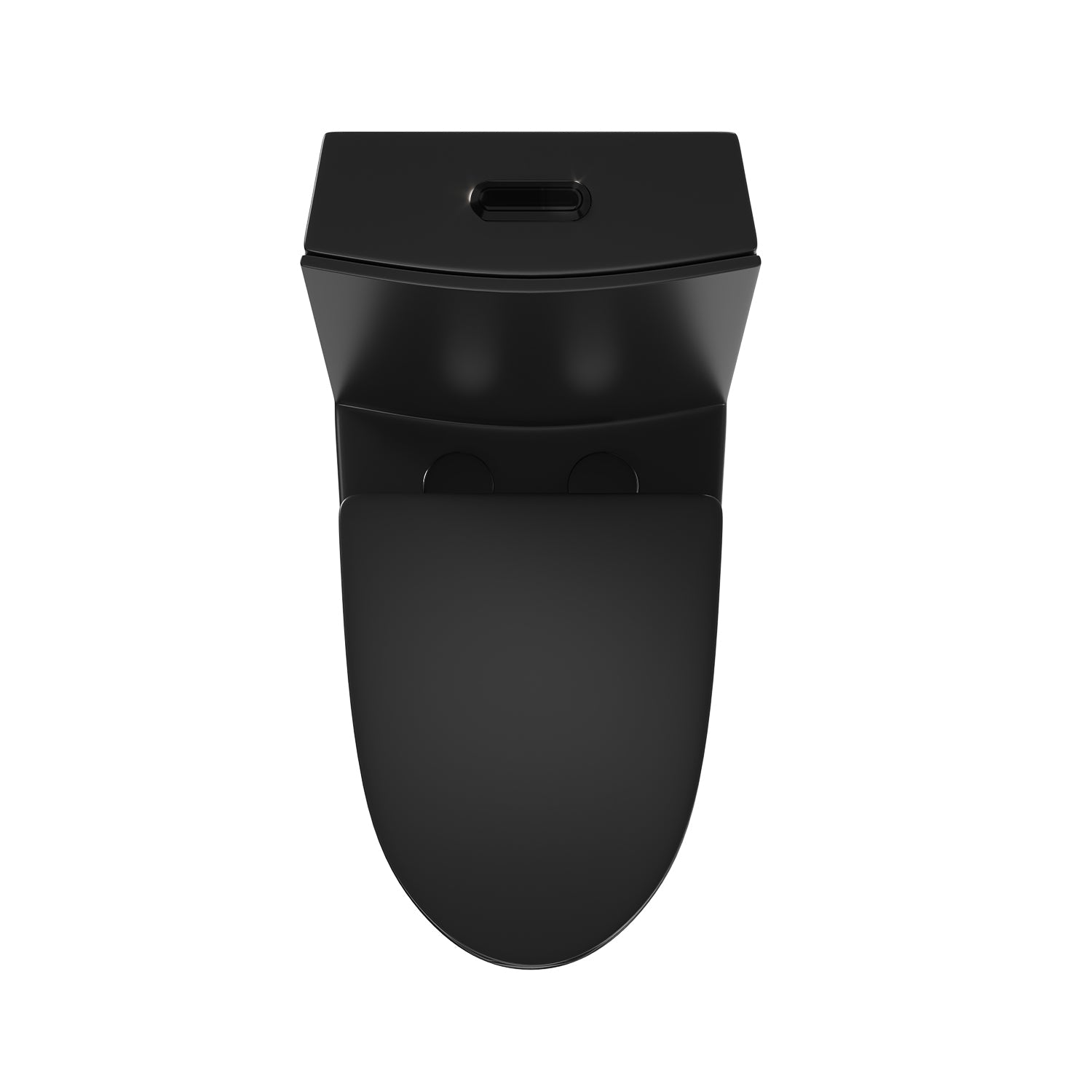

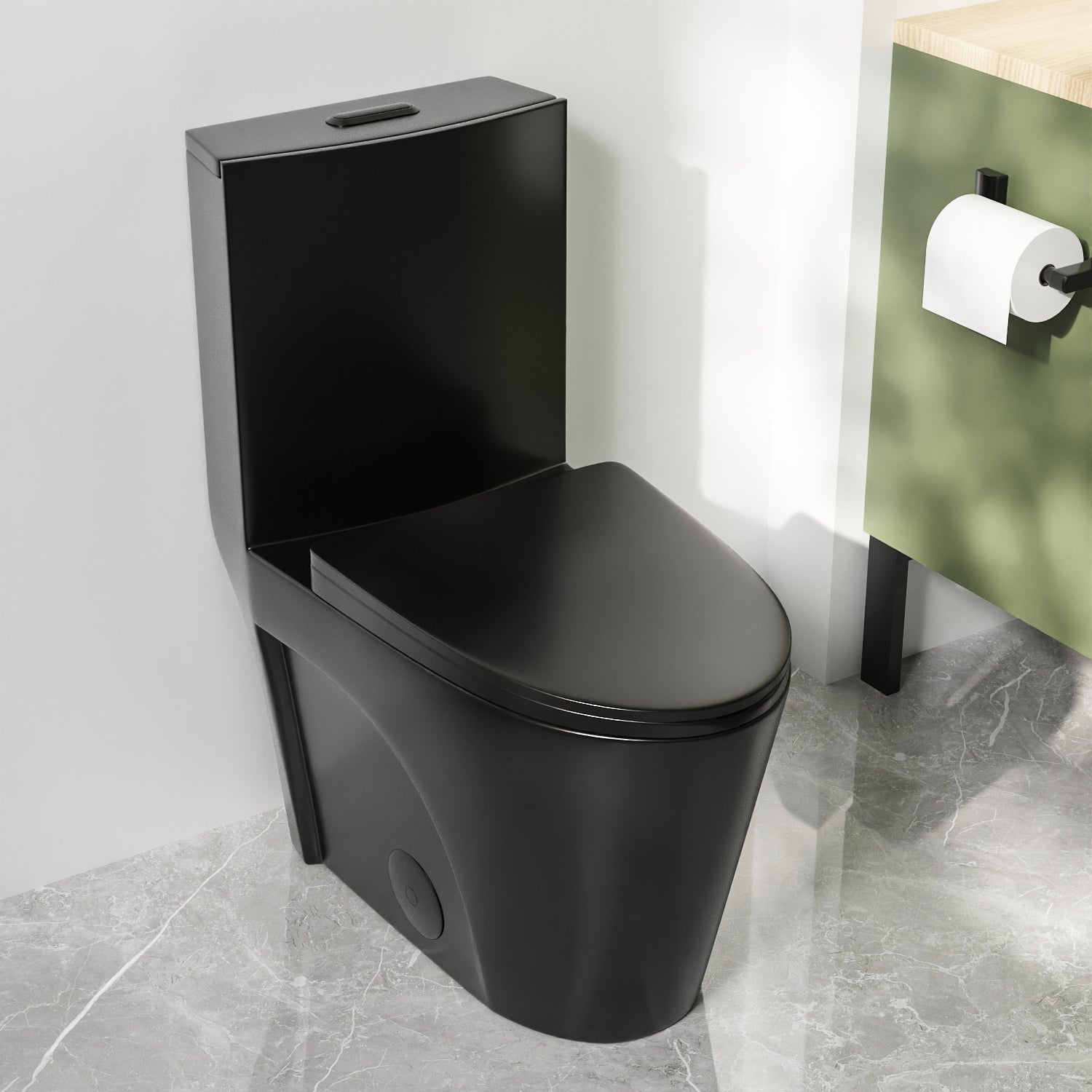

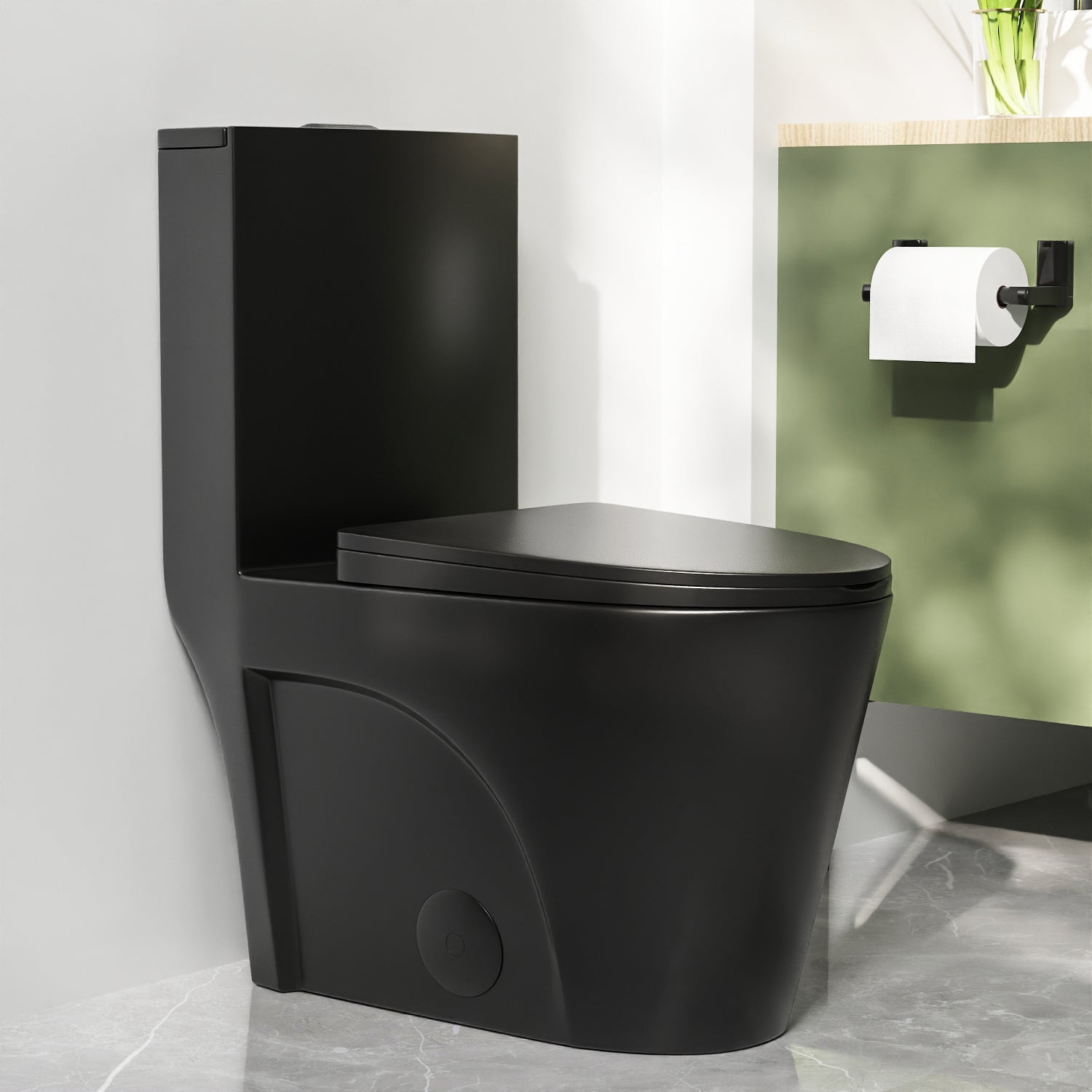

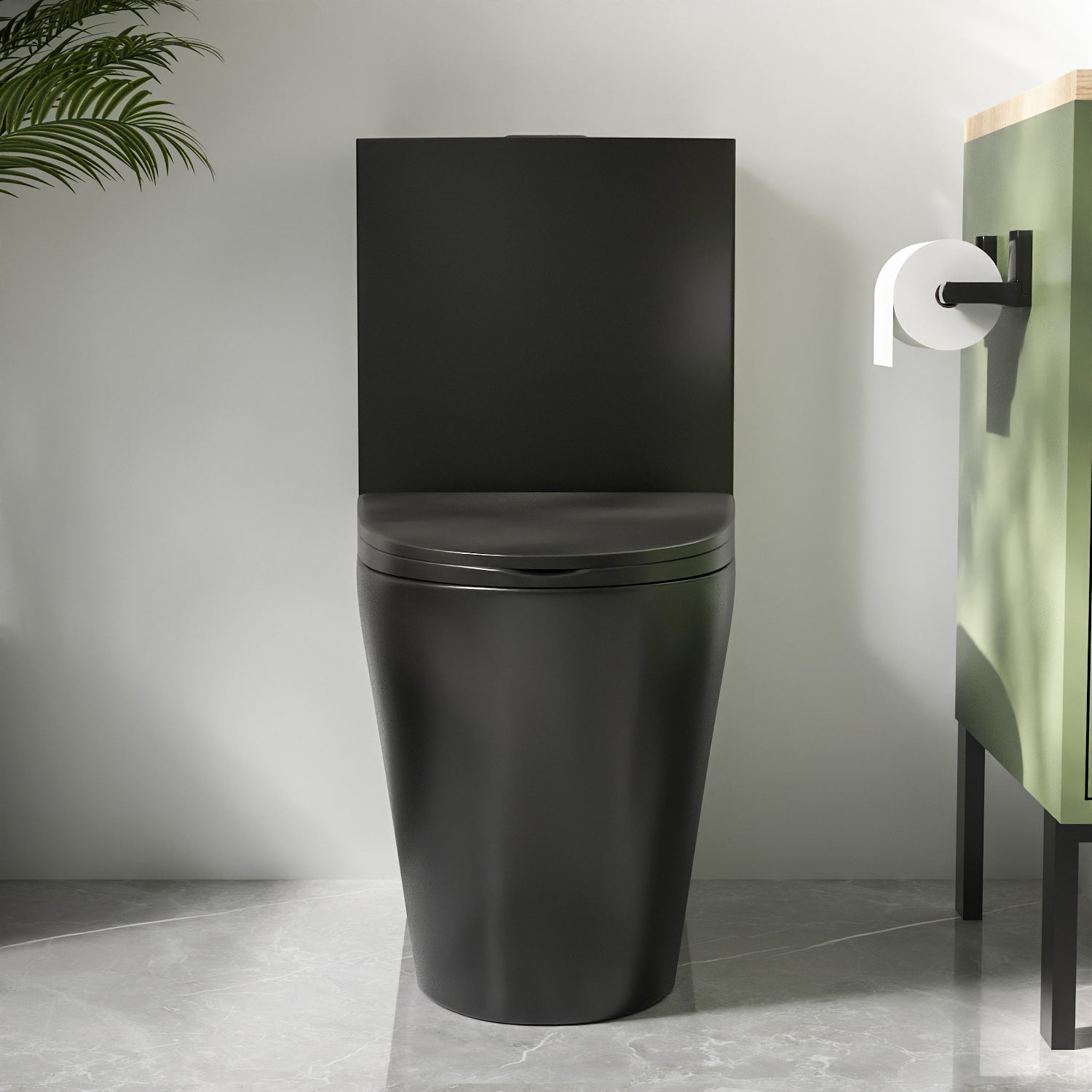

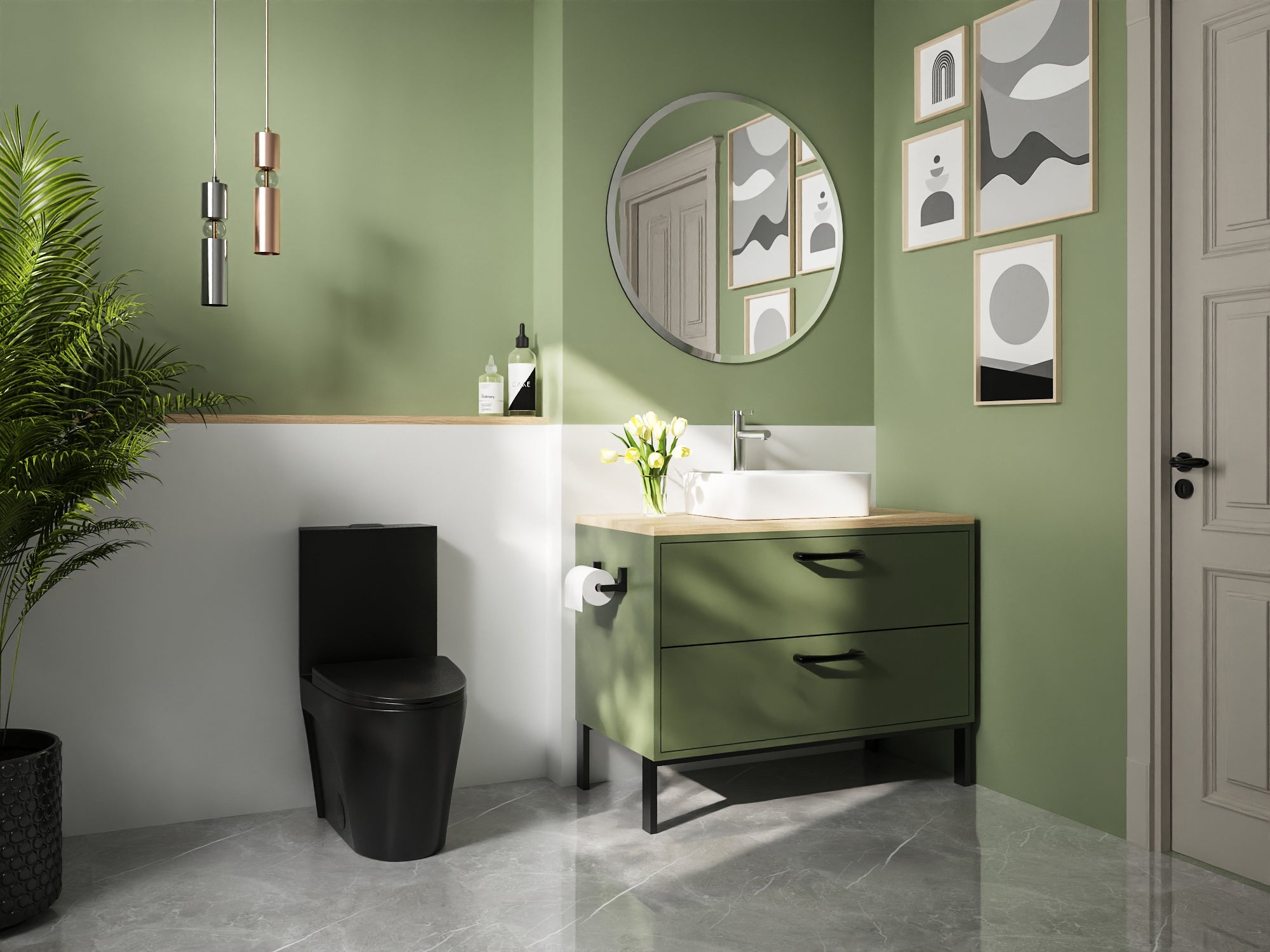

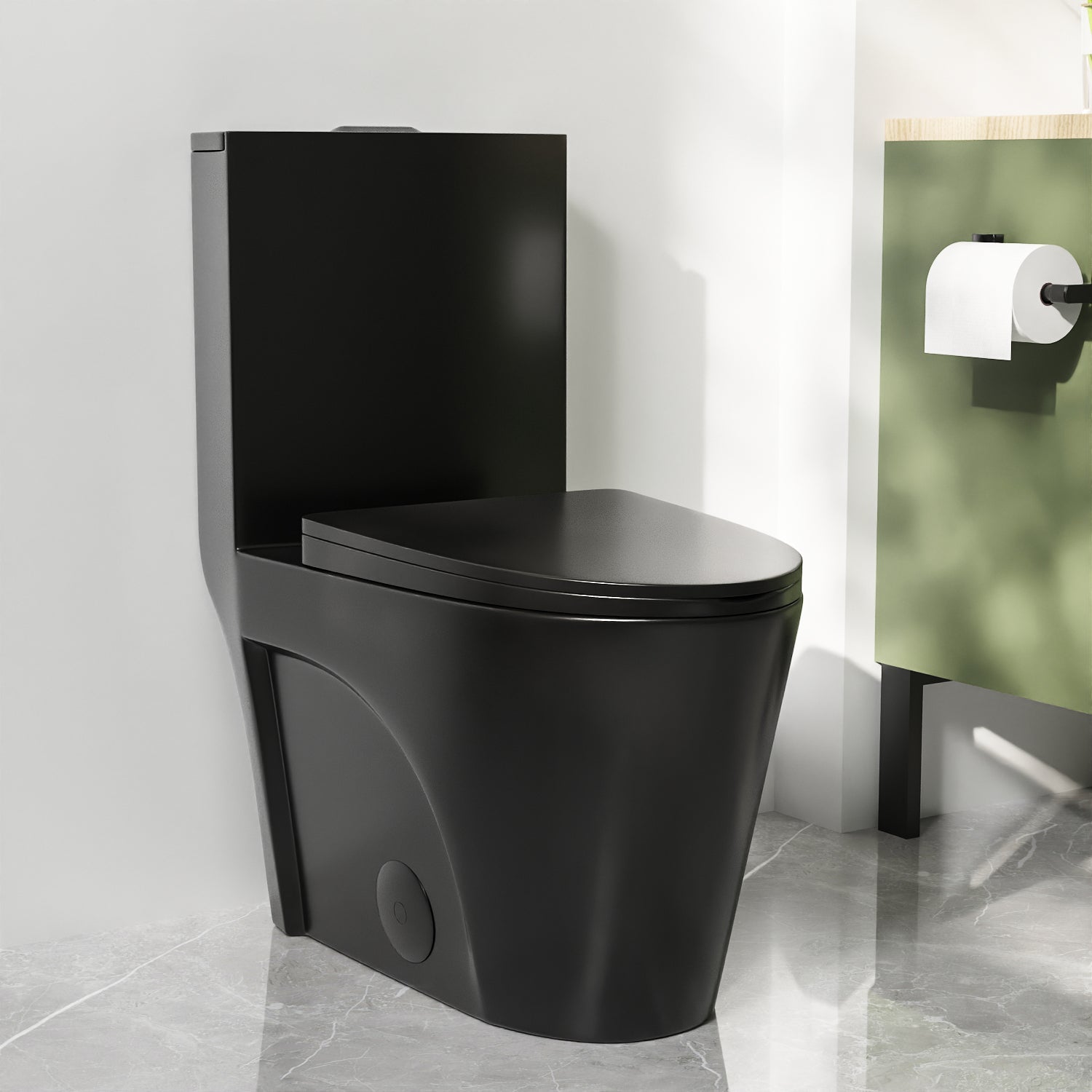

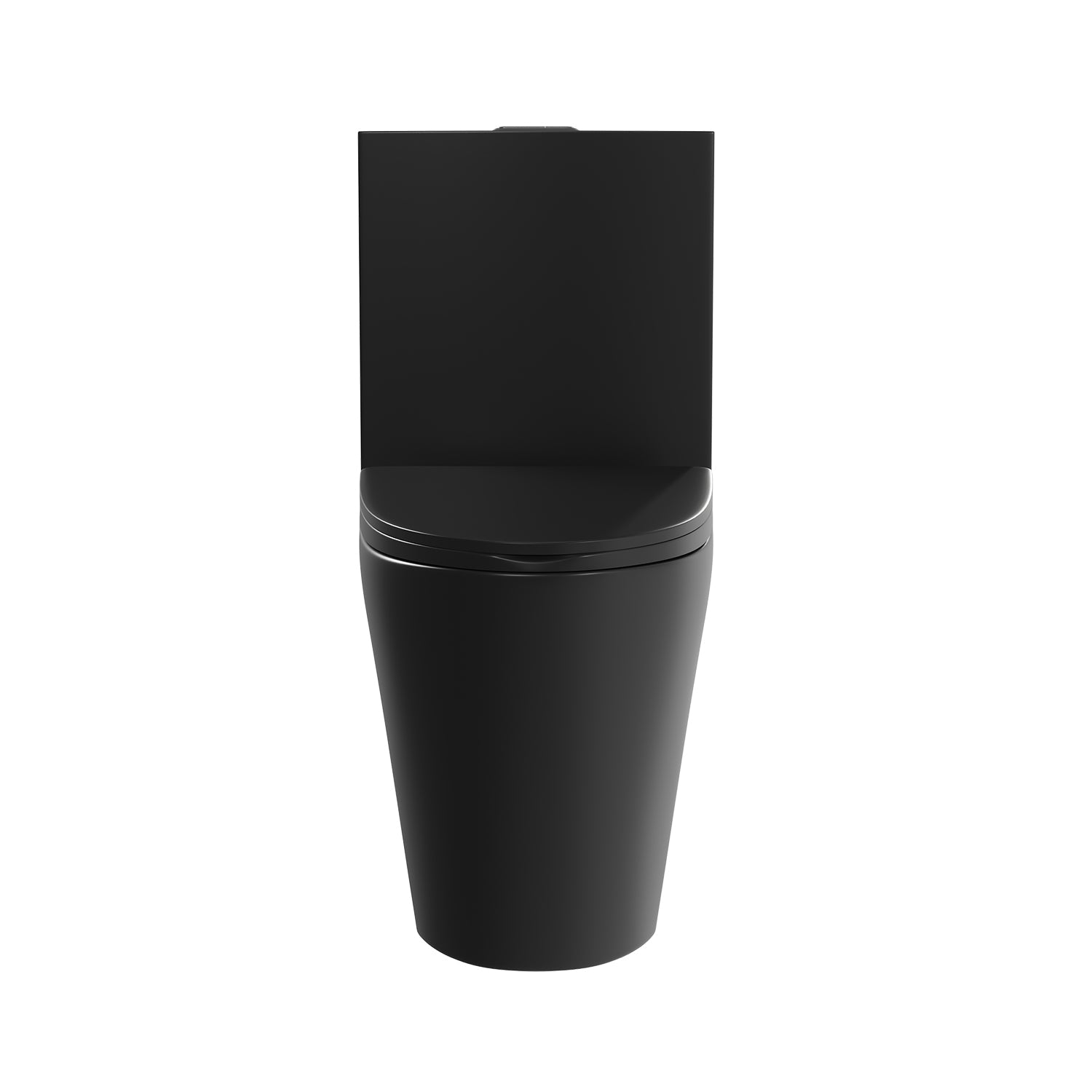

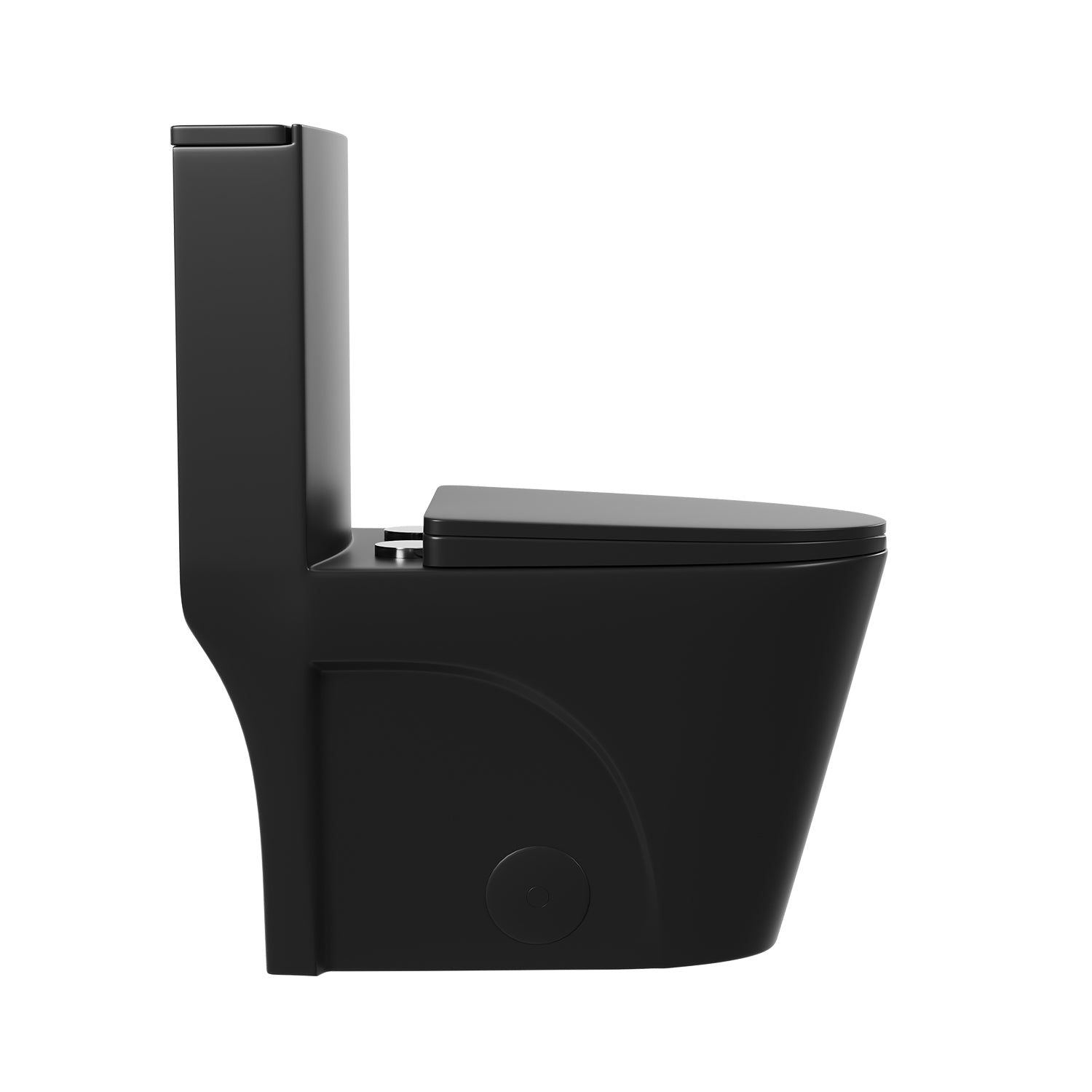

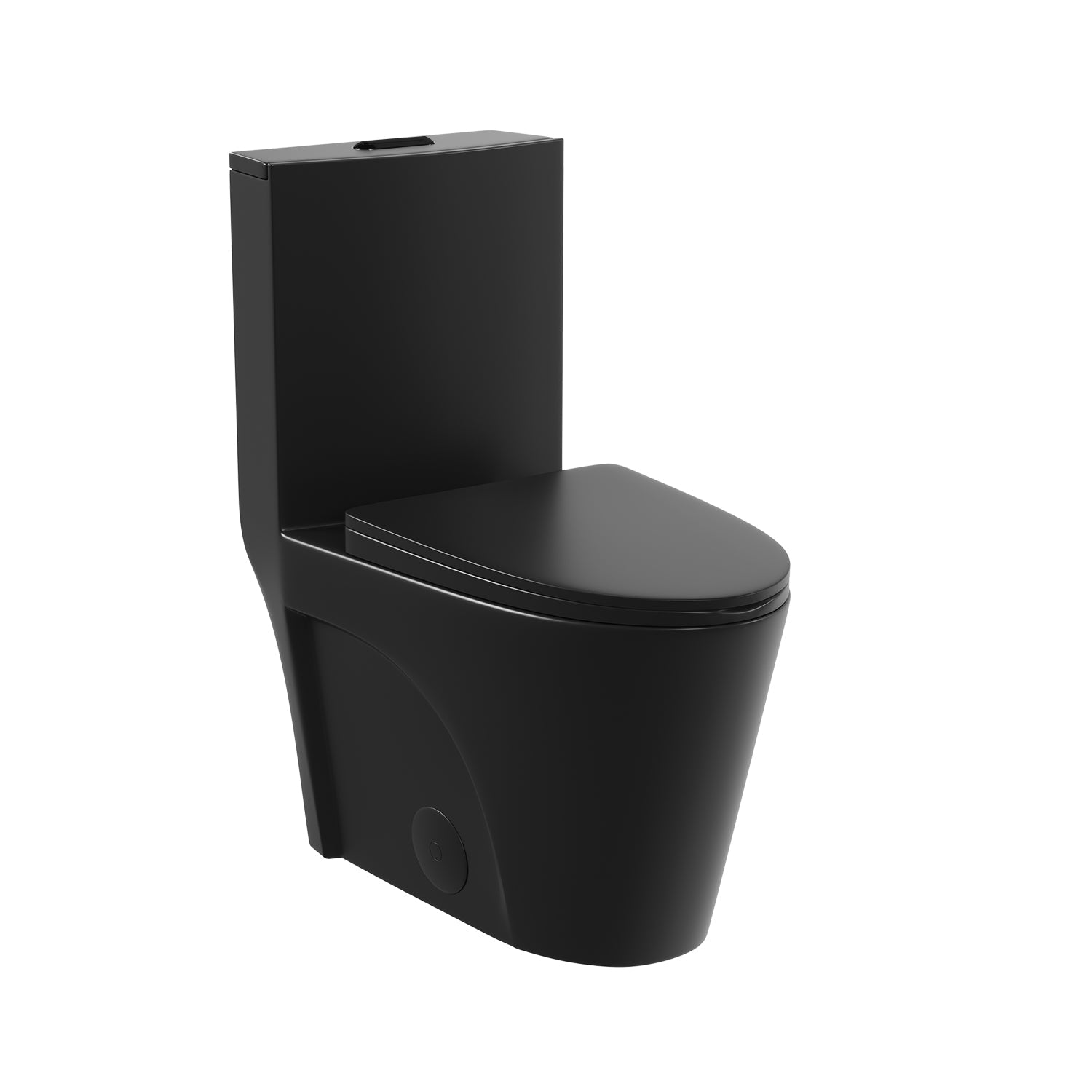

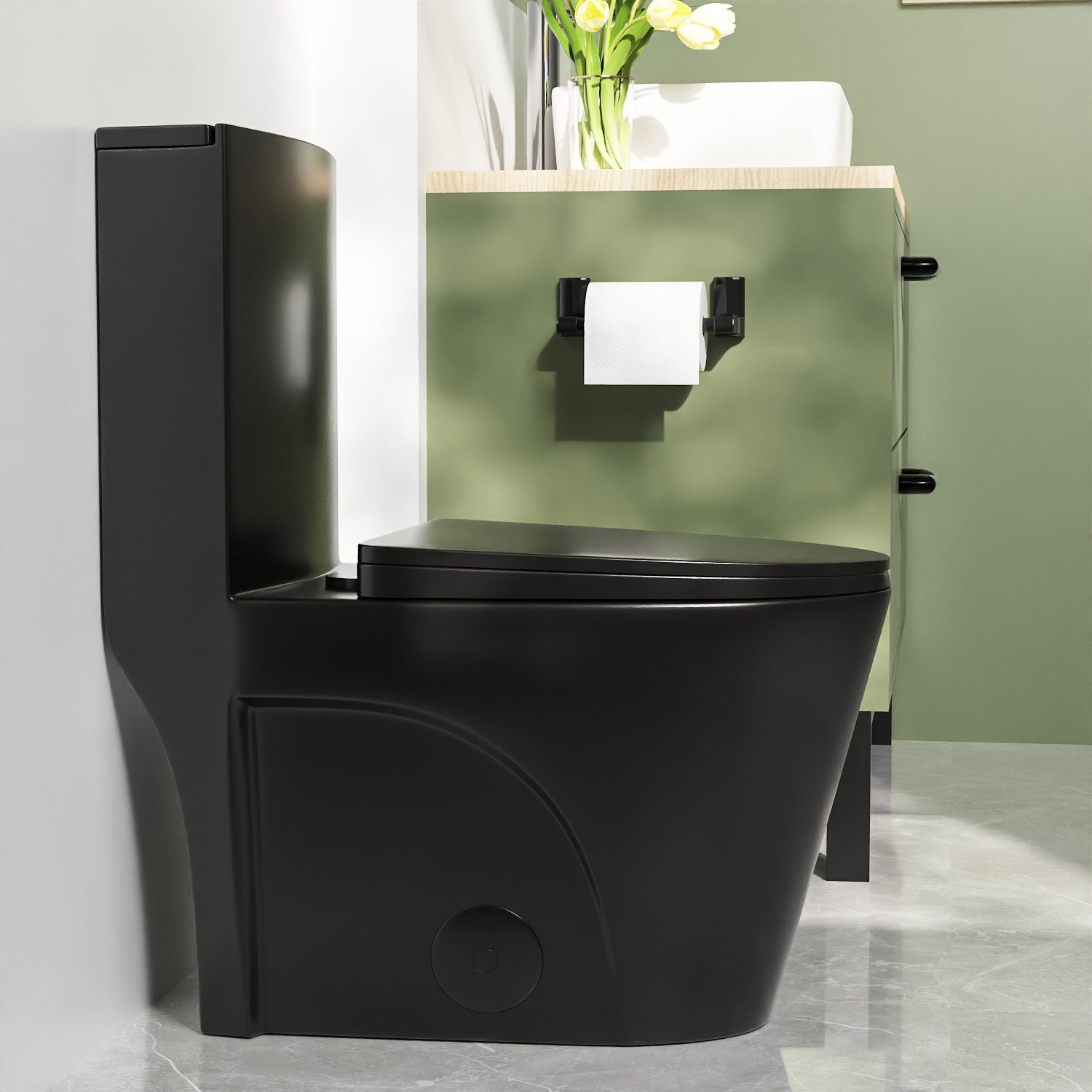

The modern DeerValley 1.6 GPF Dual-Flush Elongated One-Piece Toilet with a full-skirted bowl has clean lines and presents a simple and elegant visual experience, suitable for most styles of bathrooms. The seamless design feature creates a sleek look that is not only hygienic but also makes cleaning easier. Dual-flush functionality offers more options and maximizes efficacy, delivering powerful flush while saving water. Quick-release toilet seat not only makes it convenient to install and remove for most people but also make it easier to clean the toilet thoroughly. Moreover, the toilet seat has a soft-close function, which reduces the noise of collisions and provides a safer use experience by closing gently.
Features
• The toilet made of ceramic material calcined at high temperatures has a solid texture, good compressive ability, and strong corrosion resistance.
• With a self-cleaning glaze, this toilet has a smooth and delicate surface, which does not easily leave stains, and has a super antibacterial effect.

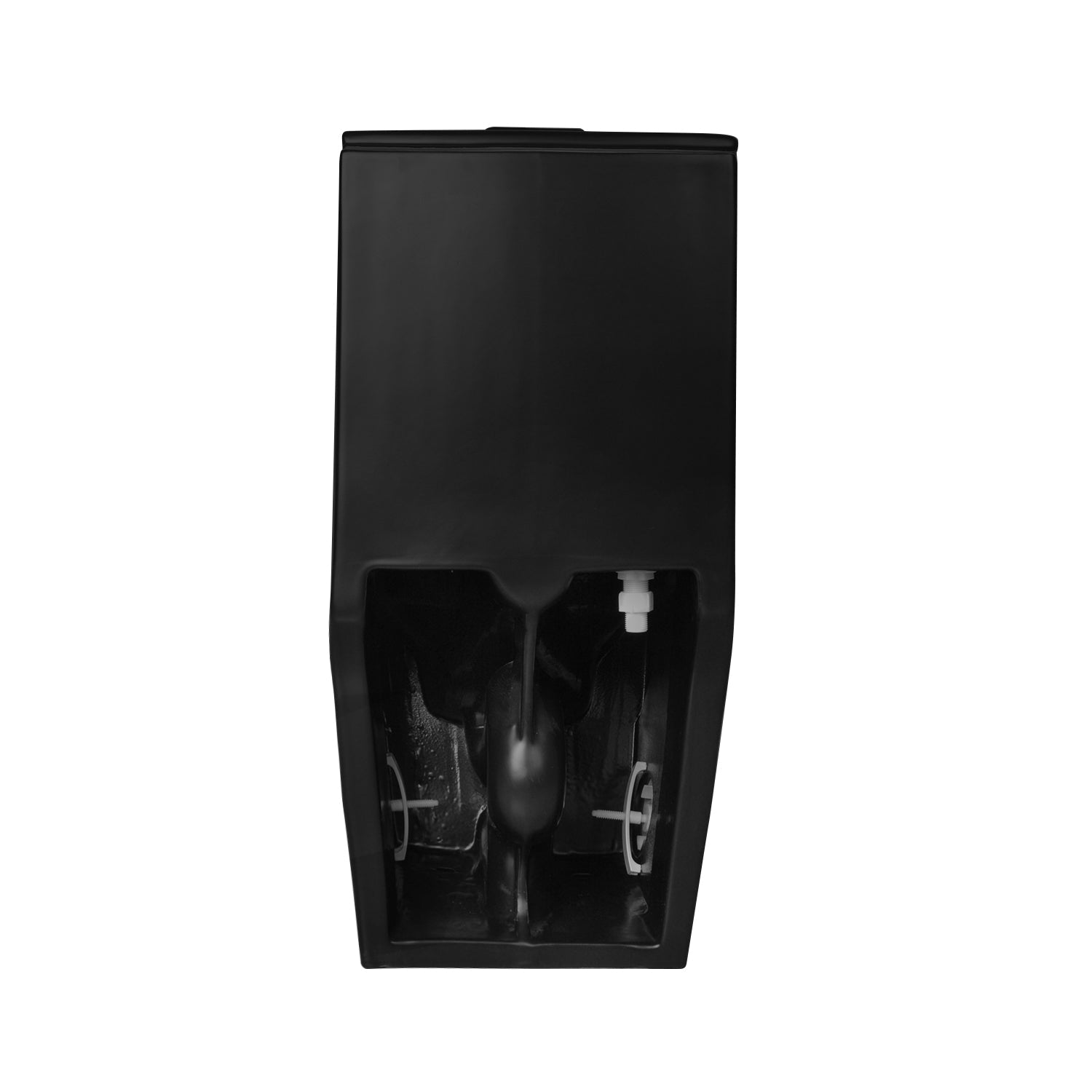

• Concealed trapway design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
• Dual flush toilet with a maximum flush of 1.6 GPF, which can effectively eliminate clogging problems.
• A toilet seat with a soft closing function can avoid excessive force when closing the toilet seat which is beneficial to prolong the service life.
• Quick-release toilet seat is easy to install and remove, avoiding the existence of cleaning dead corners and helping to clean the toilet easily.
• All-in-One Package: including toilet, pre-installed soft closing toilet seat, pre-installed flush valve, high-quality wax ring, floor bolts, and also installation instructions.
•
O ne-year limited warranty. DeerValley is always confident in our products and takes care of every customer.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

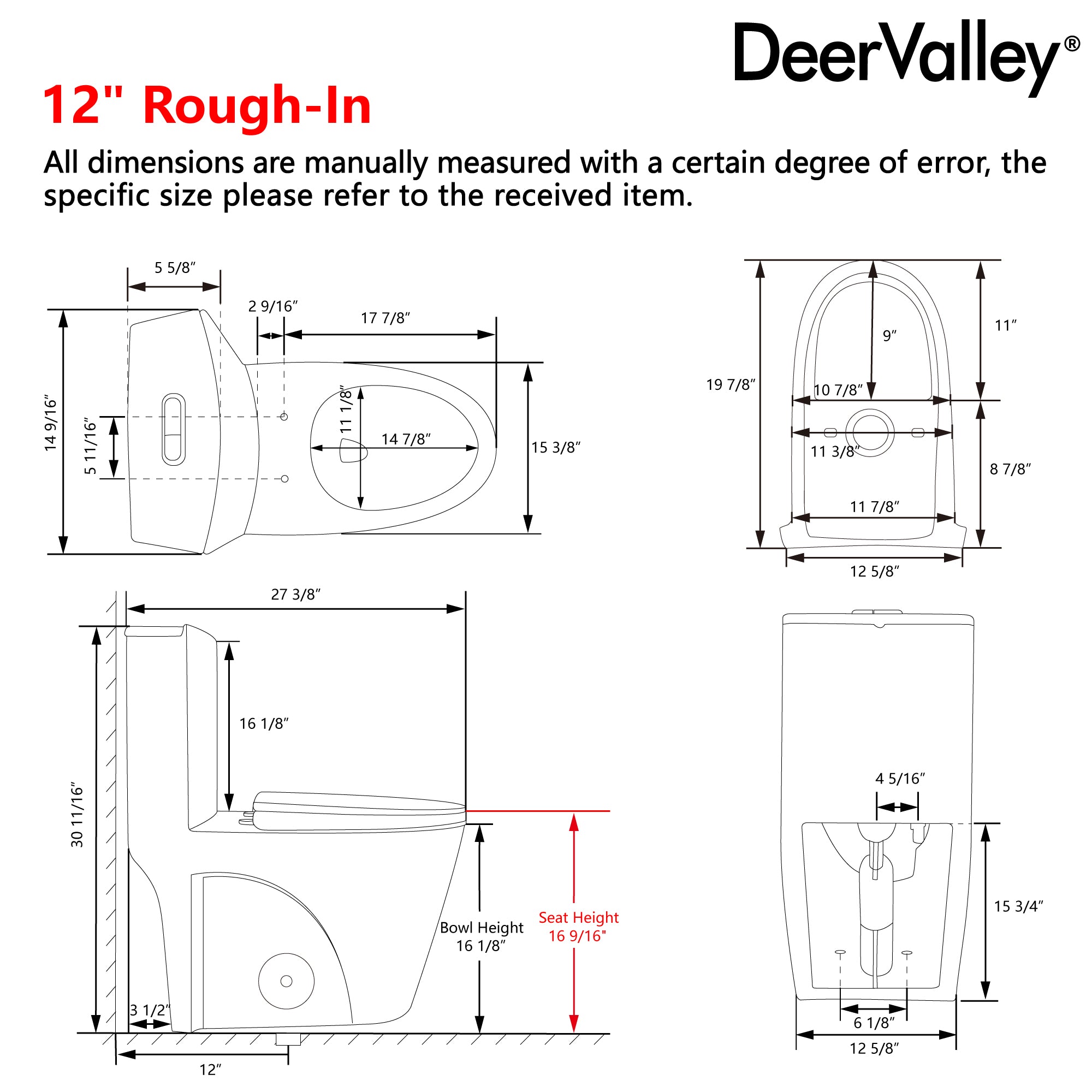

Weights & Dimensions
Overall: 26.97″L X 15.35″W X 30.31″H
Rough In Size: 12″
Toilet Seat Height – Top to Bottom: 17.32″
Bowl Height – Top to Bottom: 16.14″
Tank: 14.76″H X 14.76″L X 5.91″W
Tank Lid: 0.63″H X 14.57″L X 5.63″W
Bolts Spread Distance: 5.67″
Distance from the Seat Installation Hole to the Tank: 2.56″
Distance from the Back of the Toilet to the Wall: 3.54″
Toilet Installation Hole Distance: 6.1″
Height from the Bottom of the Water Tank to the Ground: 15.75″
Distance Between the Center of Adapter and the Center of Trapway: 4.33″
Trapway Diameter(Inside): 2.17″
Toilet Seat: 2.36/3.43 Back/Front” H X 14.96″W X 17.91″L
Toilet Seat Inside Ring: 8.98″W X 12.36″L
Bowl: 14.84″L X 11.1″W X 16.14″H
Toilet Base Dimension: 19.88″L X 12.6″W
Overall Product Weight: 117 lb.
Flush Volume: 1.1/1.6 GPF

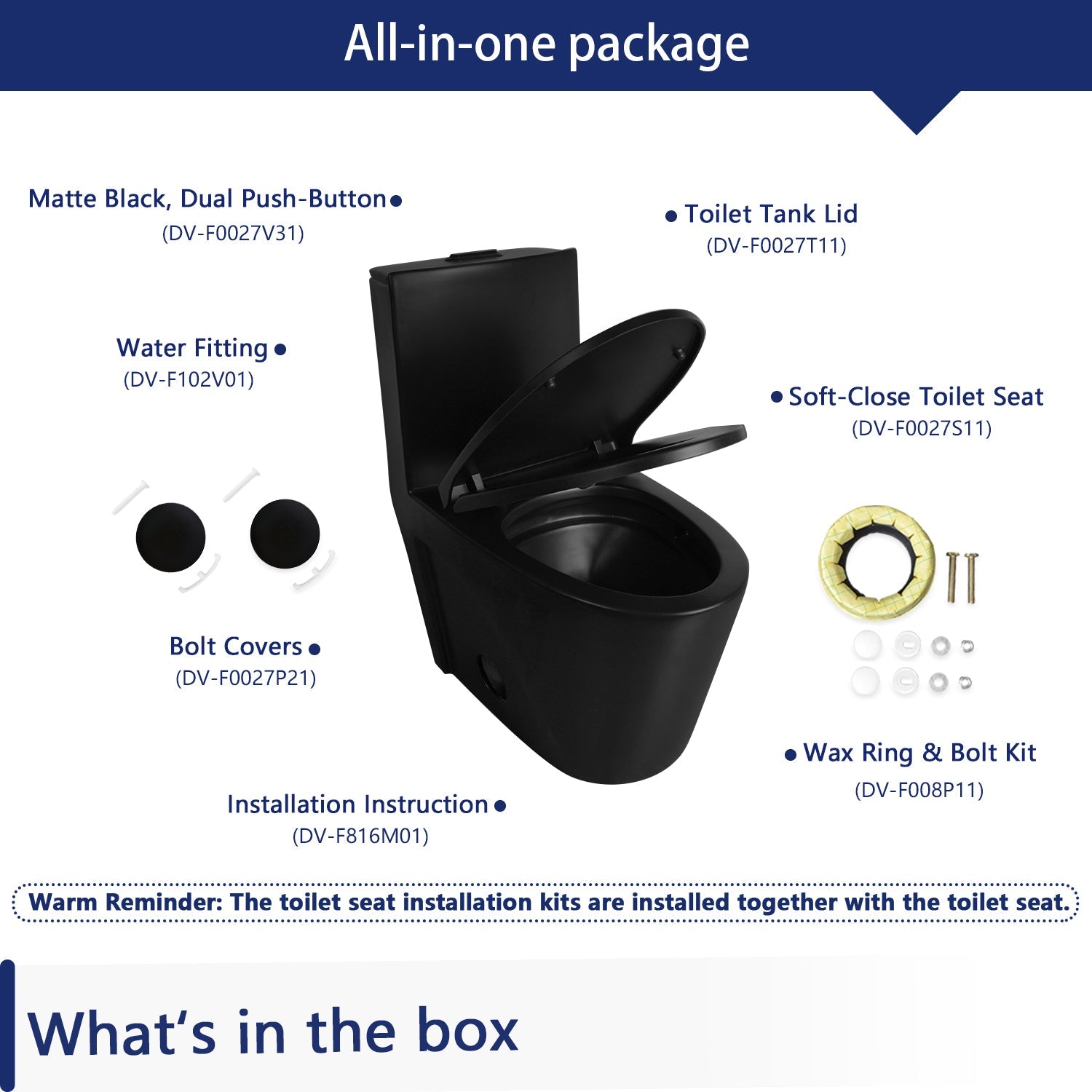

What is included in the package?
• Toilet Flange, Toilet tank side lid.
Compatible Accessories
• Toilet Seat: DV-F0027S11
• Side bolt cover parts: DV-F0027P21
• Tank lid: DV-F0027T11
• Flushing button: DV-F0027V31
Toilet Seat Bidet:
DeerValley’s Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.
•
DV-1B0093 & DV-1B0095
Installation Manual:
?
?
?
